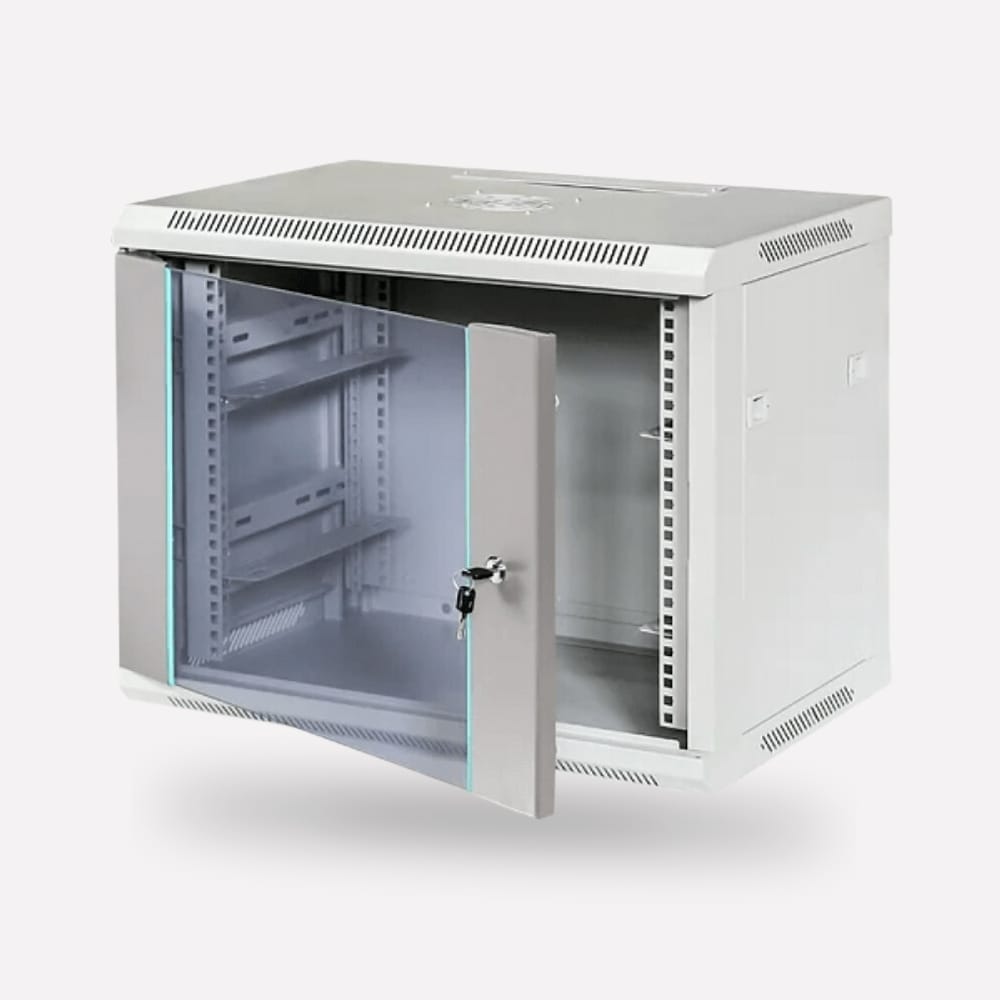

9U Heat Reduction Rack
Q-Connect wall mount enclosures are specially designed for small networking, domestic applications, audio video, telecom and networking applications. Enclosures are fabricated out of MS steel, CNC programmed, punched, bent, welded, and powder coated with the highest quality standards.
Configuration for standard enclosures is a welded frame
integrated with vented side walls along with an air purifier
sheet with fan mounting provision. The rear side of the
enclosure has wall mounting provision, front glass door with
lock and key provides visibility and security.
All racks have 6 mm insulated sheets which will minimize the
internal temperature by 7-10 Degrees Celsius. Also, our racks
have lightning inside the Rack which will be illuminated once it
opens and goes off when the door is closed.
Key Features
- Adjustable 19” equipment mounting verticals.
- Depth adjustable mounting slots.
- 2 Fans both side ventilation with air filter.
- Powder-coated finish with pretreatment process .
- Internal illumination.
- Insulated sheet to optimize temperature.
Orderable Accessories
- Power Distribution Units.
- Wire manager.
- Cantilever shelf/tray (optional).
- Fixed shelf (optional).
- Hardware packet (optional).
Technical Data
| Rack Standard | Conforms to DIN 41494 or equivalent standard |
|---|---|
| Construction | Welded |
| Front Door | Lockable toughened glass door |
| Basic Frame | M S steel |
| Gauze | 22 |
| Equipment Mounting | DIN standard slots |
| Mounting angle | 19” Mounting Angles Made Of Formed Steel |
| Standard Finish | Powder Coated |
| Top And Bottom Cove | Welded to frame, vented, And Field Cable Entry Exit Cutouts |
| Standard Color | Grey |
| Static Load | 40Kgs. |
